High-Speed Continuous Coding
Supports fast-moving production lines with reliable variable-data printing.

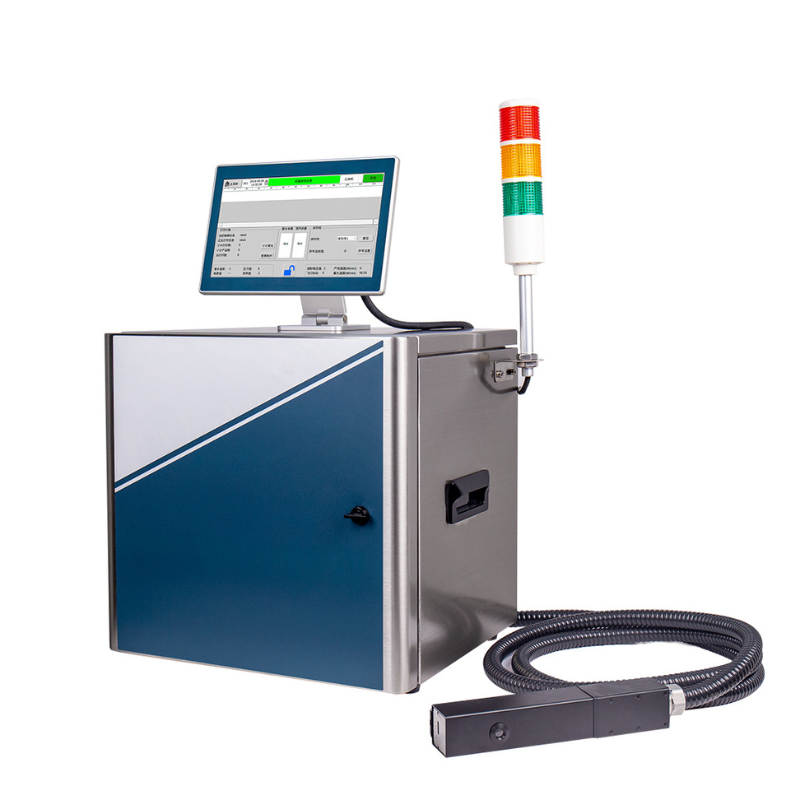

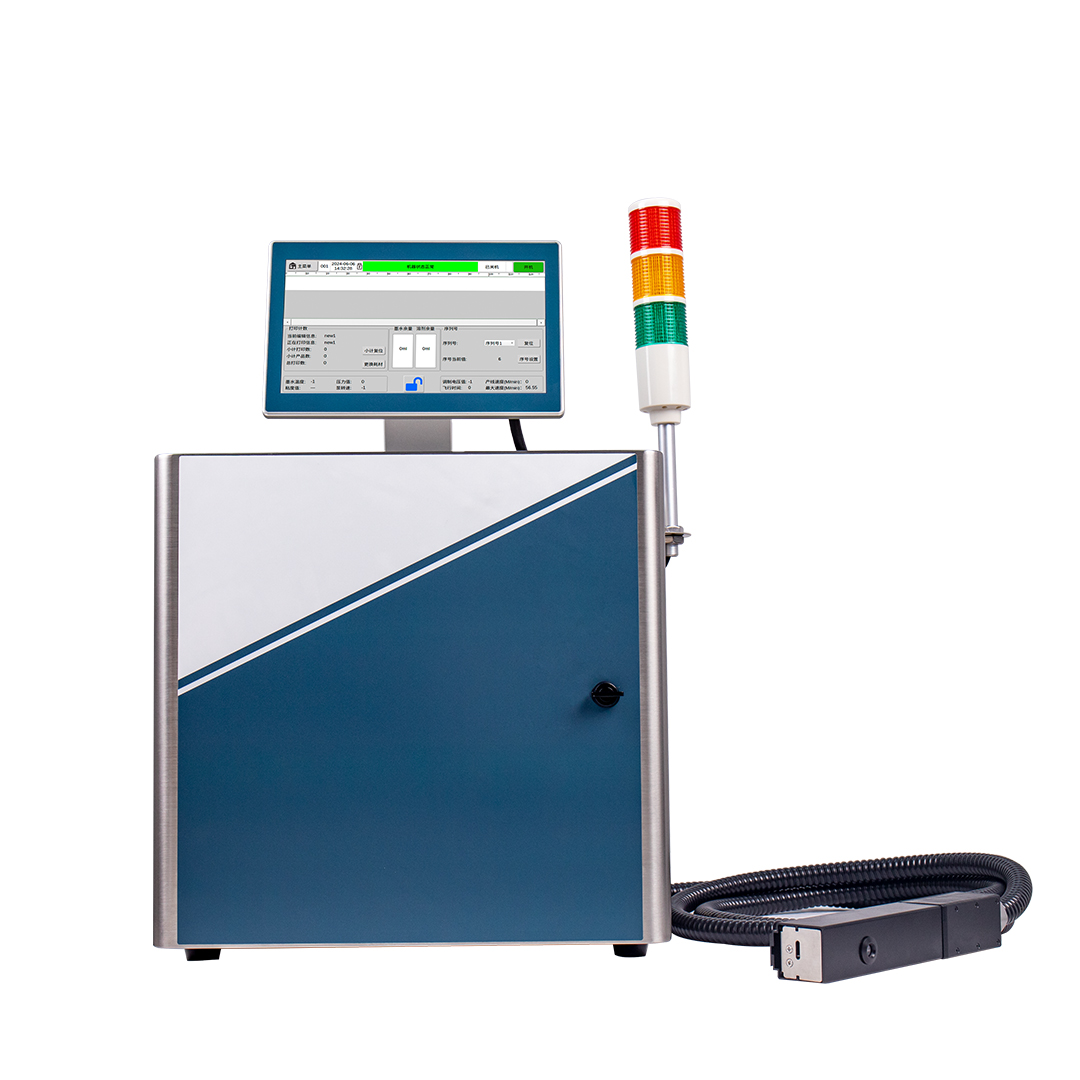

Die Based CIJ Printer DX 60 is a compact, industrial-grade continuous inkjet coding solution designed for high-speed production lines. It delivers reliable, non-contact printing of batch numbers, expiry dates, barcodes, QR codes, and variable data on diverse substrates. With robust performance, easy integration, and low maintenance, it supports demanding manufacturing environments.
Product Gallery
Why Die based CIJ printer DX 60
Advanced dye-based CIJ technology delivers high-speed, non-contact printing of batch codes, expiry dates, barcodes, logos, and variable data on a wide range of packaging materials with exceptional reliability and low maintenance.
Non-Contact Printing
Prints on flat, curved, and uneven surfaces without physical contact, reducing wear and damage.
Versatile Material Compatibility
Works across plastic, glass, metal, cartons, cables, pipes, and packaging materials.
Advanced Traceability Printing
Handles serial numbers, barcodes, QR codes, dates, and dynamic production data.
Industrial Reliability
Features IP55 protection, stainless-steel construction, and automatic cleaning functions for stable operation.
Technical Specifications
DX 60 is a dye-based Continuous Inkjet (CIJ) printer engineered for high-speed, non-contact coding and marking on plastics, glass, metal, paper, and flexible packaging materials.
Parameters
Detail
Printing Parameters
Printing Lines
Up to 4 lines (7×5 matrix) / Up to 5 lines (5×5 matrix)
Printing Height
2 – 20 mm
Printing Distance
3 – 30 mm
Nozzle Sizes
50 μm / 60 μm / 75 μm
Max. Printing Speed
Up to 576 m/min
Print Content
Text, date, time, logo, serial numbers, barcodes, QR codes, variable data
Supported Materials
Plastic, glass, metal, cartons, cables, pipes, and packaging substrates
Machine Parameters>b>
Operating System
Embedded Linux industrial system
Display
10.1-inch industrial touch screen
Interfaces
USB, RS232, Network Port, Encoder support
Protection Level
IP55
Power Supply
100 – 240V AC
Rated Power
150 W
Construction
304 Stainless Steel
Dimensions
422 × 364 × 397 mm (without display)
Weight
Approx. 24 kg
Operating Environment
0 – 45°C, 30 – 70% RH
Download Product Profile
