Electro-Pneumatic Control System
Combines electronic controls with pneumatic actuation for precise, reliable and repeatable printing performance.
The Electro Pneumatic Pad Printing Machine combines electronic controls with pneumatic actuation to deliver precise, reliable and high-speed printing on flat, curved and irregular surfaces. Designed for industrial production, it offers programmable operation, consistent print quality and easy integration with automated manufacturing.

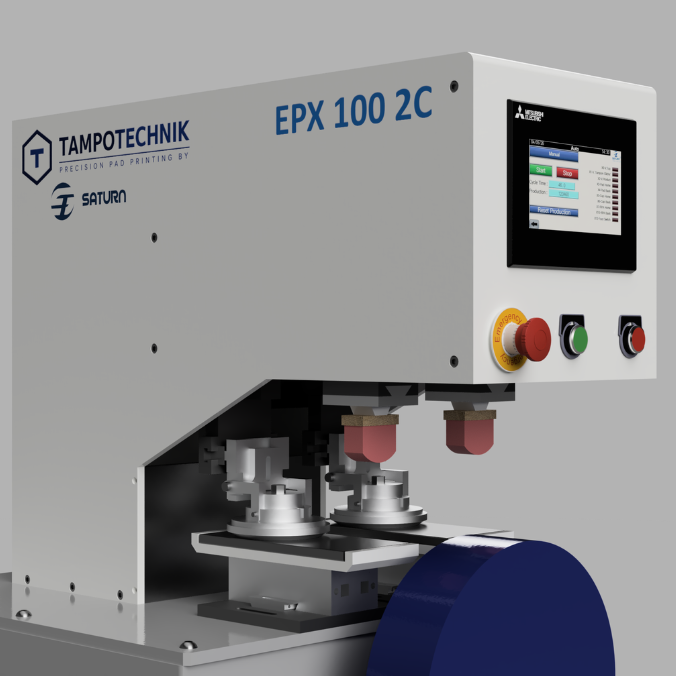

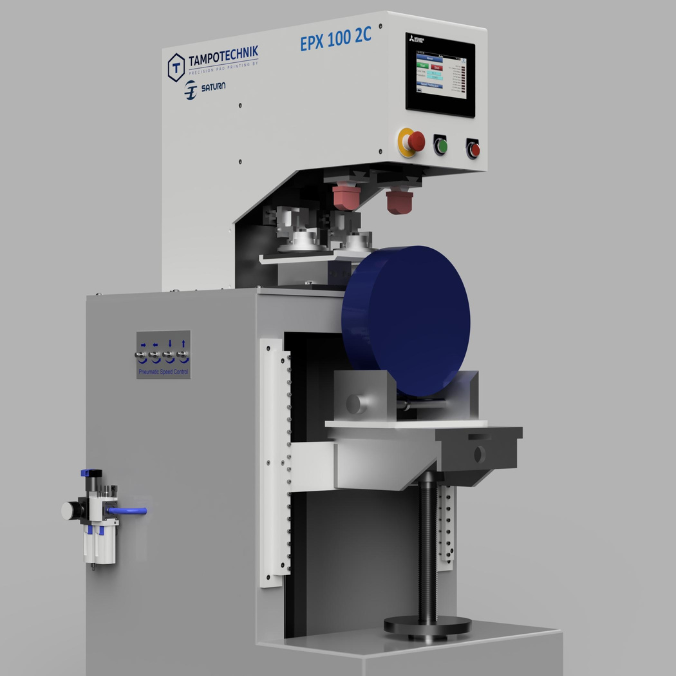

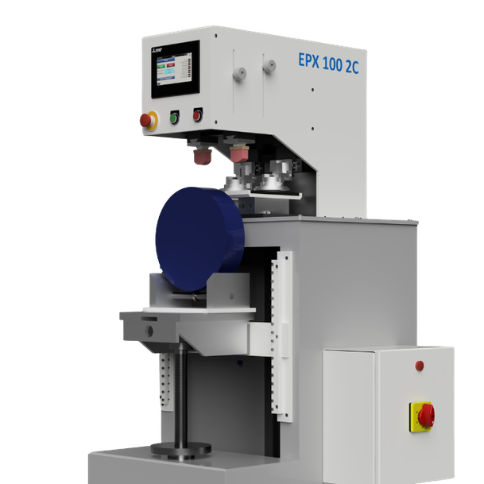

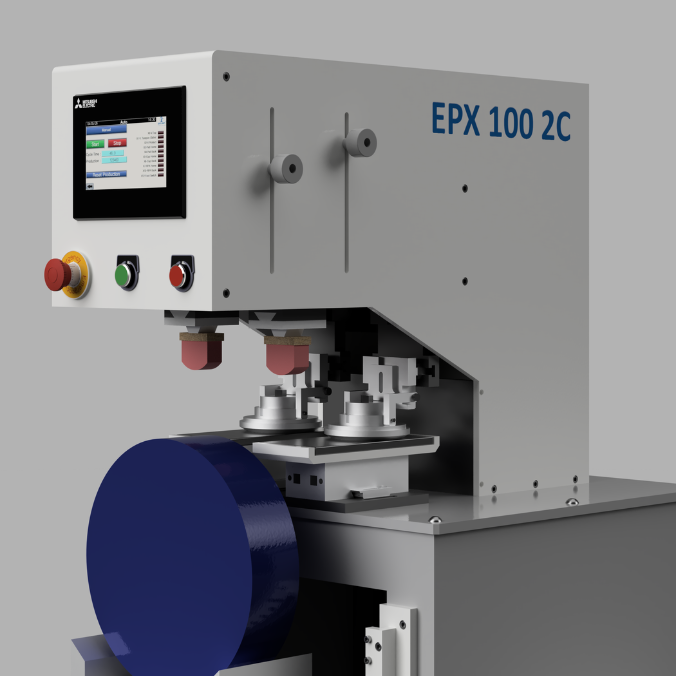

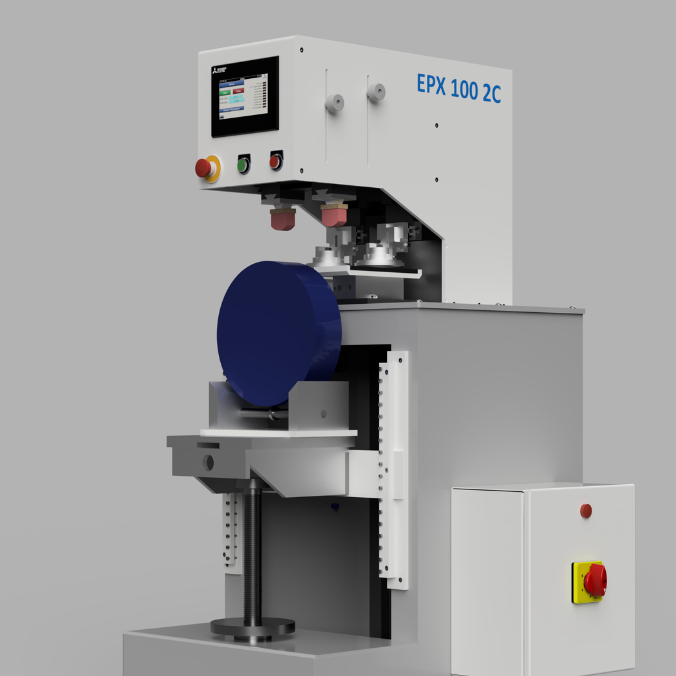

Product Gallery
Why Electro Pneumatic
The Electro Pneumatic Pad Printing Machine combines intelligent electronic controls with reliable pneumatic actuation to deliver precise, repeatable and cost-effective printing.
High-Precision Printing
Delivers exceptional print accuracy and repeatability, making it ideal for fine graphics, logos and detailed industrial markings.
PLC & Touchscreen Interface
Features an intuitive touchscreen control panel with programmable settings for quick operation, setup and production management.
High-Speed Production
Designed for continuous industrial manufacturing with fast cycle times while maintaining consistent print quality.
Automation-Ready Design
Easily integrates with rotary tables, conveyors, robotic loading systems and other automated production equipment.
Technical Specifications
Designed with advanced electro-pneumatic technology, the Electro Pneumatic Pad Printing Machine delivers precise, repeatable and high-speed printing performance for demanding.
Parameters
Detail
Ink-/ Doctoring cup (Ø mm)
60, 90, 130/140
Cliché Size (mm)
70x140x10, 100x210x10, 150x300x12
Printing image max (Ø mm)
55, 85, 125
Tampon stoke max (mm)
80, 100, 125
Single cycle
Yes
Height of object max (mm)
90, 130
Continuous run
Yes
Force of pressure max (N)
483, 754, 1870
Number of cycles (in continuous run) Cycles/h
1600, Up to 1000
Pad stroke onto cliché (mm)
30 - 50, 30 - 80, 30-100
Pad stroke onto workpiece, variably adjustable (mm)
30 - 80, 30 - 100, 30-125
Pad installation height max (mm)
55, 95, 120
Tape cleaning system ( TCS )
Yes /optional
Cycle counter
Yes /optional
Multiple printing double /triple
Yes (Programable)
Variable speed control
Yes
Setting
Each working movement can be independently actuated by Foot pedal and switch.
Control
Electro - Pneumatic
Control voltage (V/DC)
24
Connected load (K/W)
0,15 - 0.18, 0.2
Drive
Pneumatic
Power supply ( special voltage on request ) V
220
Power frequency (Hz)
50 - 60
User interface HMI
4
Pre - fuse
2.2 A
Pneumatic Connection
Working pressure 5-6 bar nominal width 6 mm
