Pure Pneumatic Drive System
Operates entirely on compressed air, providing smooth, reliable and maintenance-friendly.
Built for dependable industrial performance, our Pure Pneumatic Pad Printing Machines deliver consistent print quality, simple operation and reliable high-speed production using compressed air-driven technology. Ideal for precision marking across a wide range of applications.

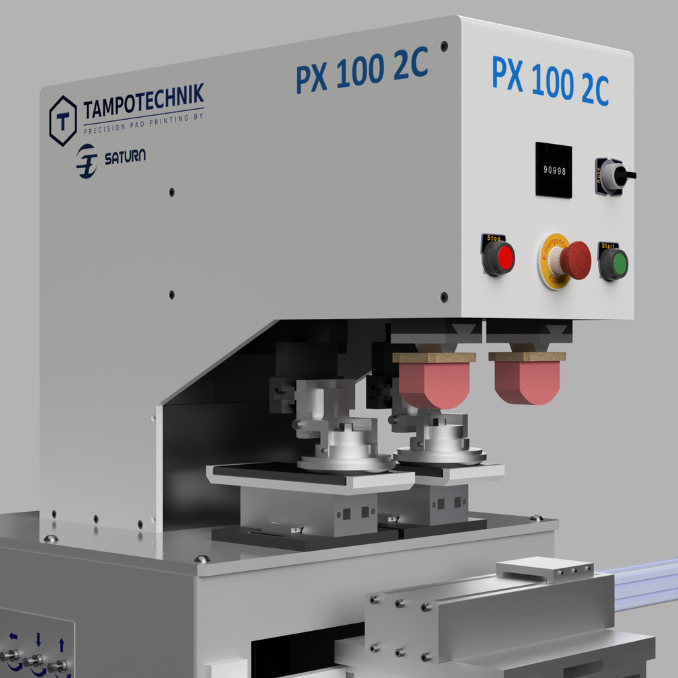

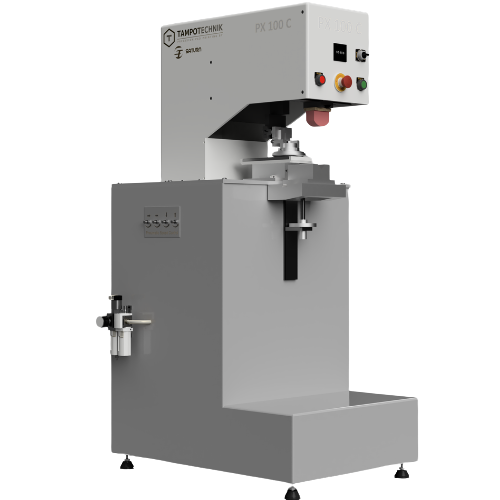

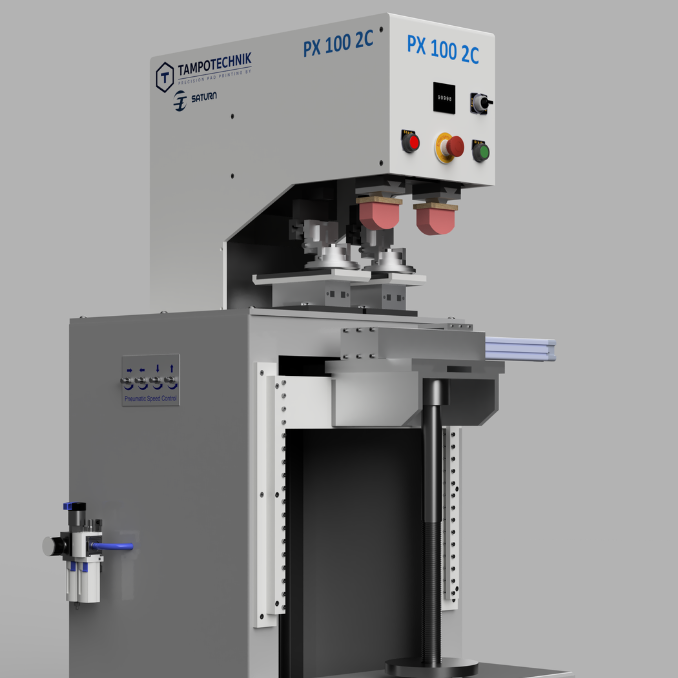

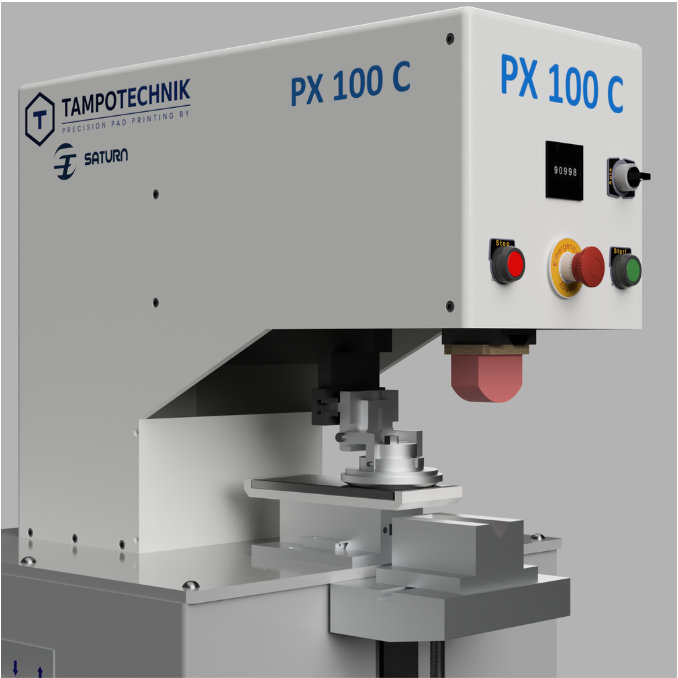

Product Gallery
Why Pure Pneumatic
The Pure Pneumatic Pad Printing Machine is engineered to deliver reliable performance, consistent print quality and cost-effective operation for industrial printing applications.
High-Speed Production
Designed for continuous manufacturing with fast printing cycles, ensuring maximum.
Precision Print Performance
Delivers accurate and repeatable image transfer on flat, curved and irregular surfaces.
Closed Ink Cup Compatibility
Supports sealed ink cup systems that reduce ink consumption, minimize solvent evaporation.
Quick Setup & Easy Operation
Features simple controls and rapid job changeovers, minimizing downtime and improving production efficiency.
Technical Specifications
Built with robust pneumatic technology and precision-engineered components, the Pure Pneumatic Pad Printing Machine delivers reliable, repeatable performance for high-quality industrial printing.
Parameters
Detail
Ink-/ Doctoring cup (Ø mm)
60, 90, 130/140
Cliché Size (mm)
70x140x10, 100x210x10, 150x300x12
Printing image max (Ø mm)
55, 85, 125
Tampon stoke max (mm)
80, 100, 125
Single cycle (THROUGH MODULUR SWITCH)
Yes
Height of object max (mm)
90, 130
Continuous run
Yes
Force of pressure max (N)
483, 754, 1870
Number of cycles (in continuous run) Cycles/h
1600, Up to 1000
Pad stroke onto cliché (mm)
30 - 50, 30 - 80, 30-100
Pad stroke onto workpiece, variably adjustable (mm)
30 - 80, 30 - 100, 30-125
Pad installation height max (mm)
55, 95, 120
Tape cleaning system ( TCS )
STANDARD
Cycle counter
Yes /optional
Multiple printing double /triple
NO
Variable speed control
Yes
Setting
Each working movement can be independently actuated by Foot pedal and switch.
Control
Pneumatic
Drive
Pneumatic
Pneumatic Connection
Working pressure 5-6 bar nominal width 6 mm
